Harp

Formatter · Syntax highlighting · 12 dark minimal themes · File icons
An independent, zero-dependency VS Code extension for HCL — built to scale to more languages.

What’s inside

No dependencies on other extensions. No external binaries (terraform is never invoked). The engine is language-agnostic: adding a language or a theme is data-only (see CONTRIBUTING.md).

Install

From a packaged .vsix:

code --install-extension harp-<version>.vsix
# or, from the repo:
task install-ext        # builds the .vsix and installs it

Then reload the window. Pick a theme (Cmd+K Cmd+T), pick the file icons (Preferences: File Icon Theme → harp — minimal icons), and .hcl files format via Format Document / format-on-save.

Formatter

The formatting core mirrors hclwrite (the engine behind terraform fmt): template-aware tokenization, the indent stack, the canonical spacing table, and independent alignment runs for = and trailing comments. On top of that it applies terraform’s pure-interpolation unwrapping (x = "${var.y}" → x = var.y, block bodies only).

# before                              # after
resource "aws_instance" "web"{        resource "aws_instance" "web" {
ami="ami-0c55b1"   # image             ami           = "ami-0c55b1" # image
  count=2                              count         = 2
  tags = merge(local.tags,{            tags = merge(local.tags, {
  Name="web-${ var.env }"                Name = "web-${var.env}"
})                                     })
}                                     }

• Indentation 2 spaces; = and trailing comments aligned within runs.
• Blank lines, CRLF and heredoc bodies preserved verbatim; comments untouched.
• Never corrupts a buffer: malformed input produces no edits.
• Parity is enforced by a golden corpus plus npm run sweep -- DIR, a differential check of every HCL file in a directory against a live terraform fmt (dev-time only). Current score: 0 diffs across 2100+ files from terraform-aws-modules (vpc/iam/eks/rds-aurora) and cloudposse/terraform-aws-components, plus this repo.

Not provided (yet): range/selection and on-type formatting, and the legacy quoted type-constraint rewrite (type = "list" → list(string)).

Themes

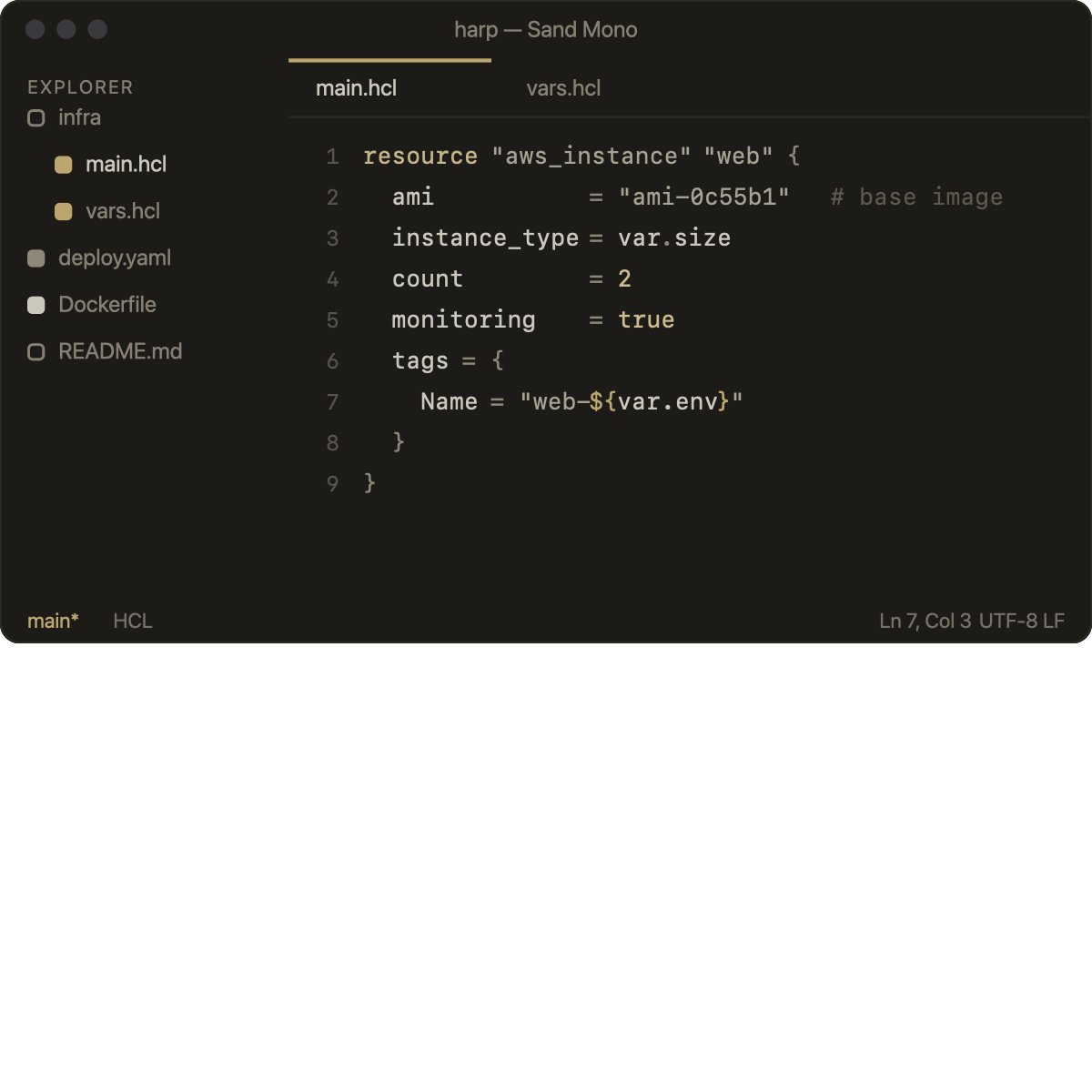

Twelve dark minimal themes. Monochrome-leaning bases, comments deliberately quiet (~2.5:1), a single accent per theme. All surfaces share the editor background by default (see style switching).

File icons

«harp — minimal icons» — one tiny rounded square per row:

• folders — outlined, dim (expanded → accent outline);
• code files — filled in a muted language hue (.go/.tf/.hcl lavender, .ts blue, .js sand, .py ochre, Docker light, …);
• quiet files — outlined, dim (README, LICENSE, locks, .gitignore, …).

~150 mappings cover the IaC/devops family — Terraform/HCL, Docker & compose, Helm, GitLab CI / Jenkins / Skaffold, Ansible, manifests — plus the usual languages. Explorer twistie arrows are hidden to match the design; folders expand on click.

Theme style switching

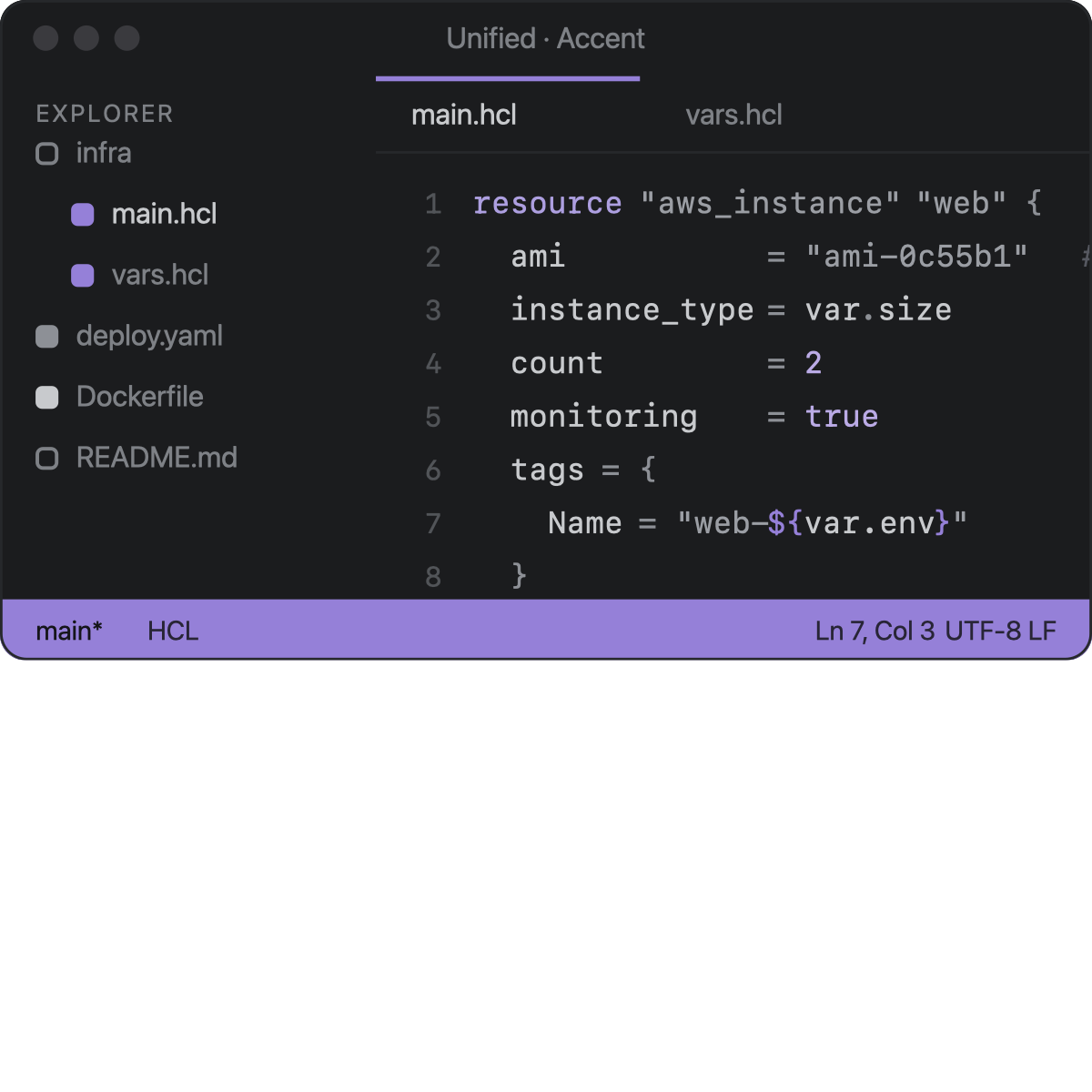

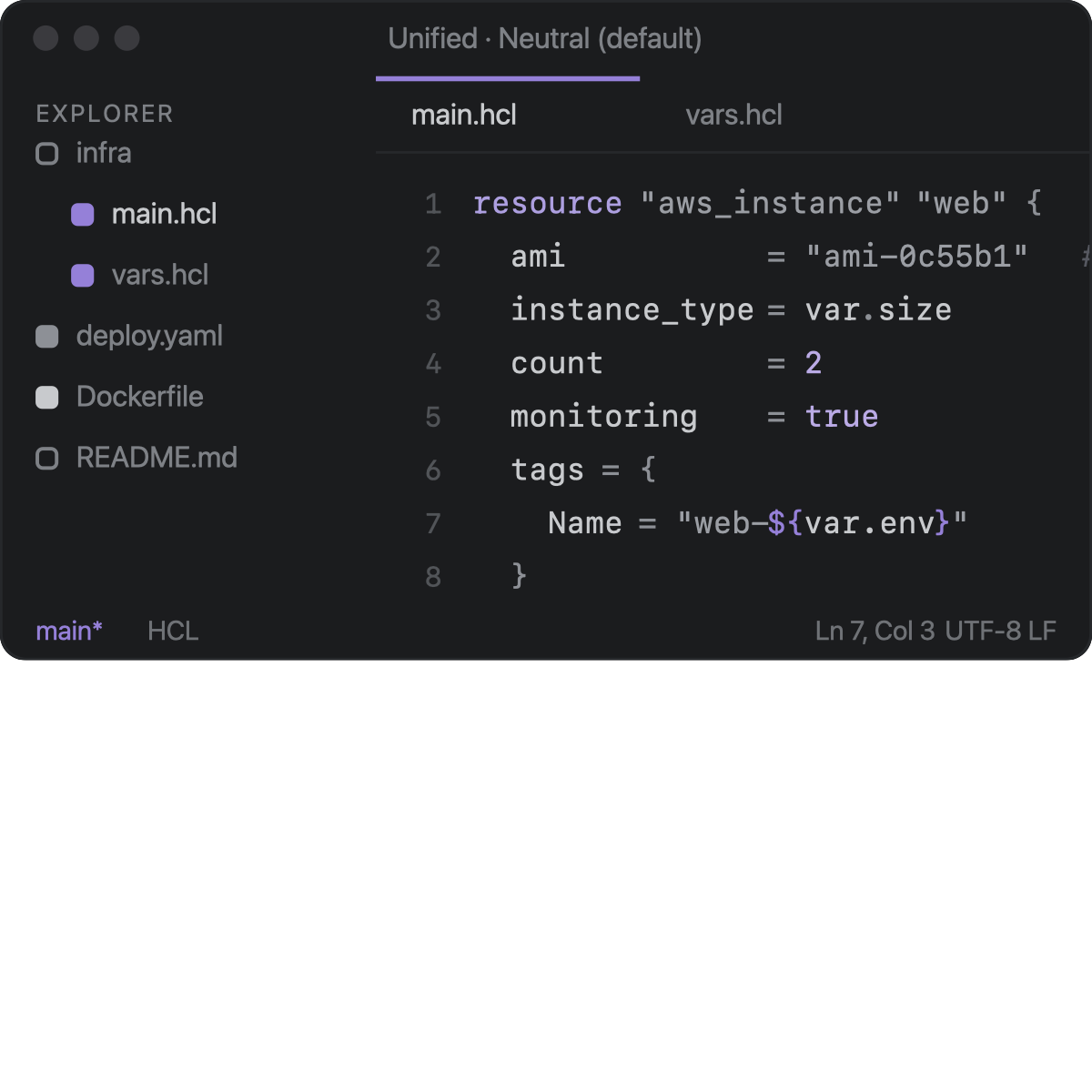

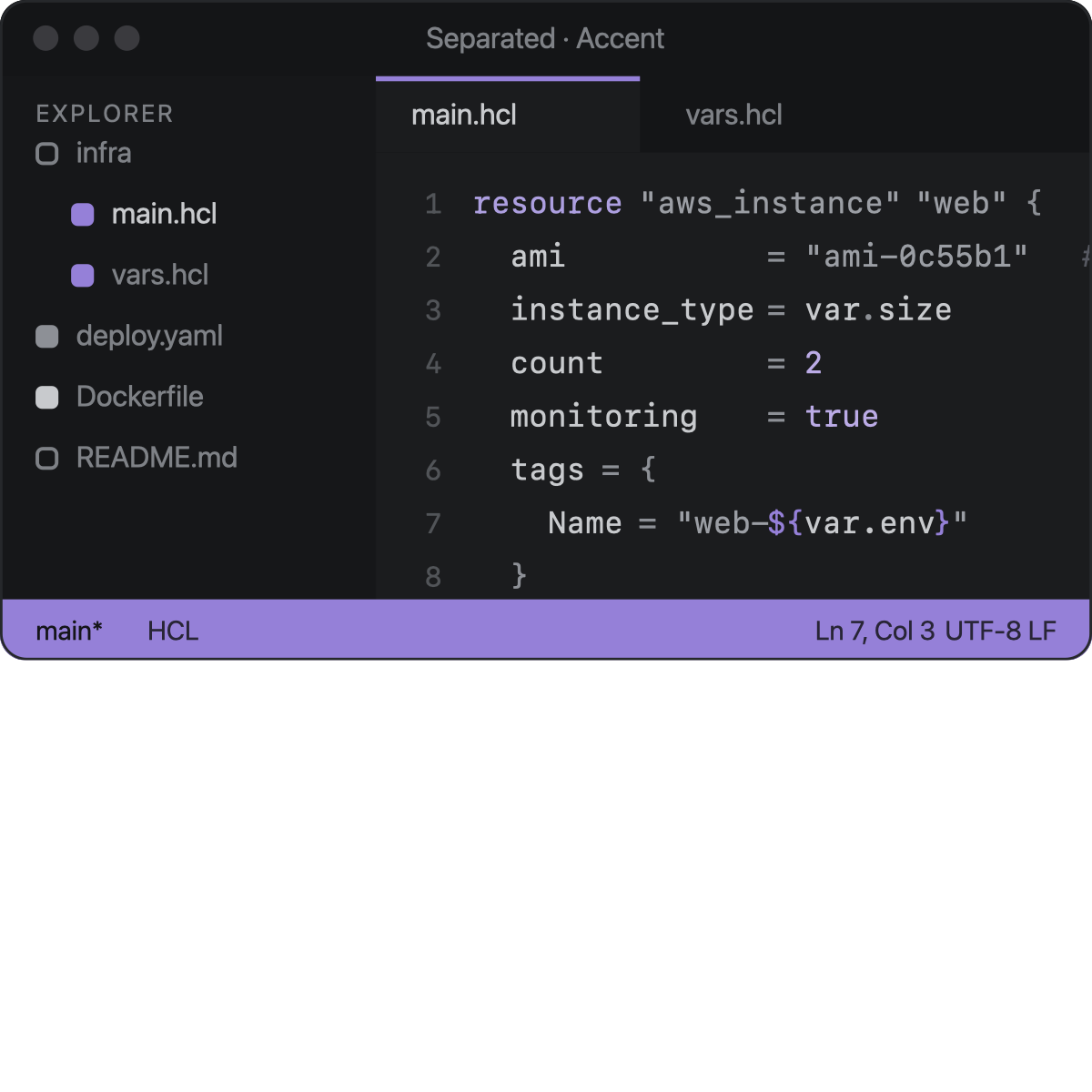

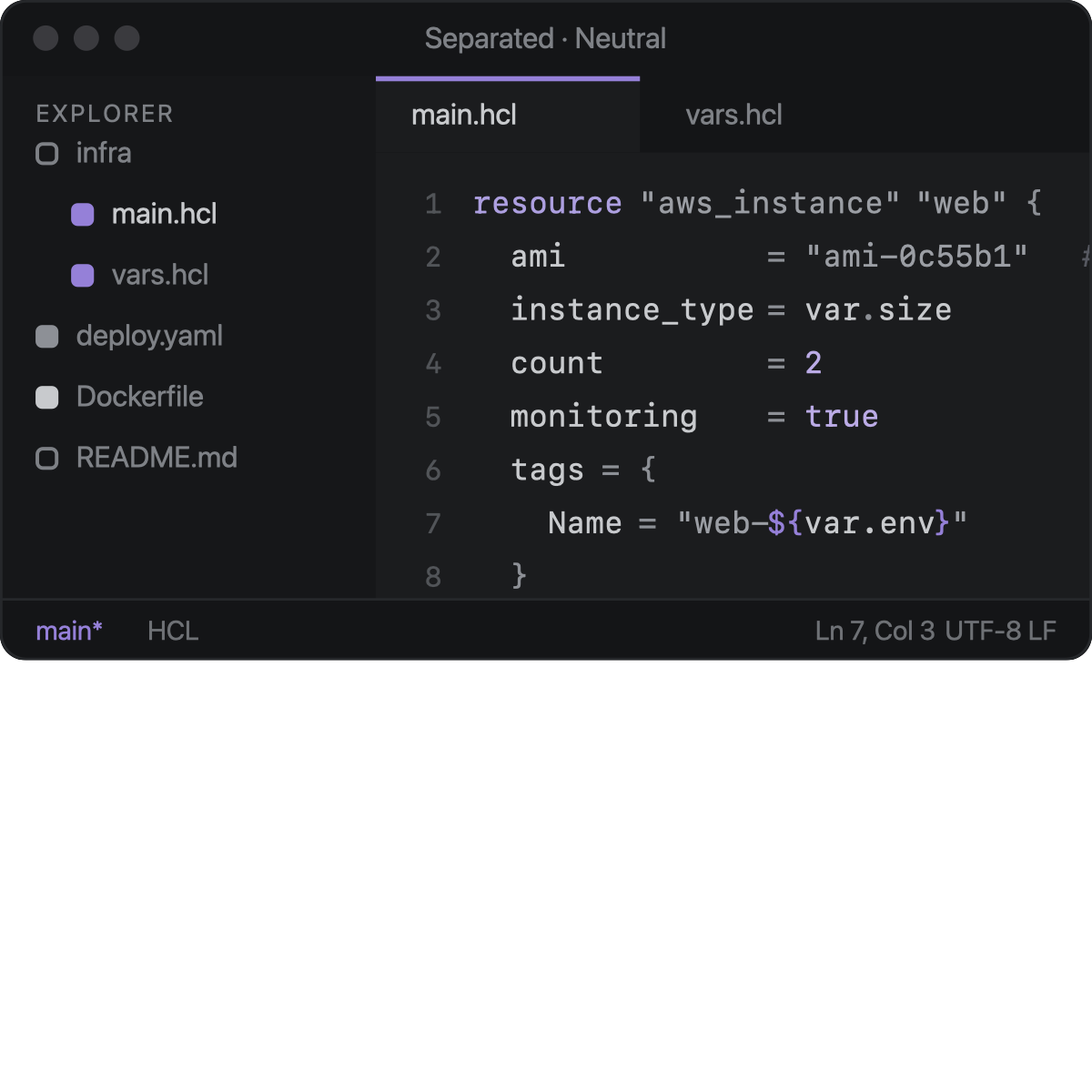

One command — Harp: Select Theme Style — applies one of four looks to all harp themes at once (or set the two settings directly):

Implementation note: VS Code has no API to restyle an installed theme at runtime, so Harp writes one "[harp — …]"-scoped block for the active theme into the global workbench.colorCustomizations and keeps it in sync on theme switches. On the defaults the block is removed entirely. Harp owns exactly those blocks; your other customizations are never touched.

Settings & commands

Commands: Harp: Select Theme Style (status bar / surfaces).

Development

npm install
task                 # list all tasks
task check           # typecheck + lint + unit tests + grammar tests
npm test             # node:test — lexer round-trips, fmt parity corpus, themes
npm run sweep -- DIR # diff every HCL file under DIR against terraform fmt
task build-icon      # regenerate images/icon.png
npm run build-previews  # regenerate docs/previews/*.svg from the palettes
task install-ext     # build the .vsix and install it into VS Code

Architecture in one breath: a language-agnostic core/ (registry, formatting provider, minimal-diff edits) with self-contained packs under src/languages/<lang>/ and src/themes/; package.json contributions are generated from the manifests (npm run sync-contributes). Adding a language or theme never touches the core — see CONTRIBUTING.md for the recipes.

License

MIT — see the LICENSE file.
